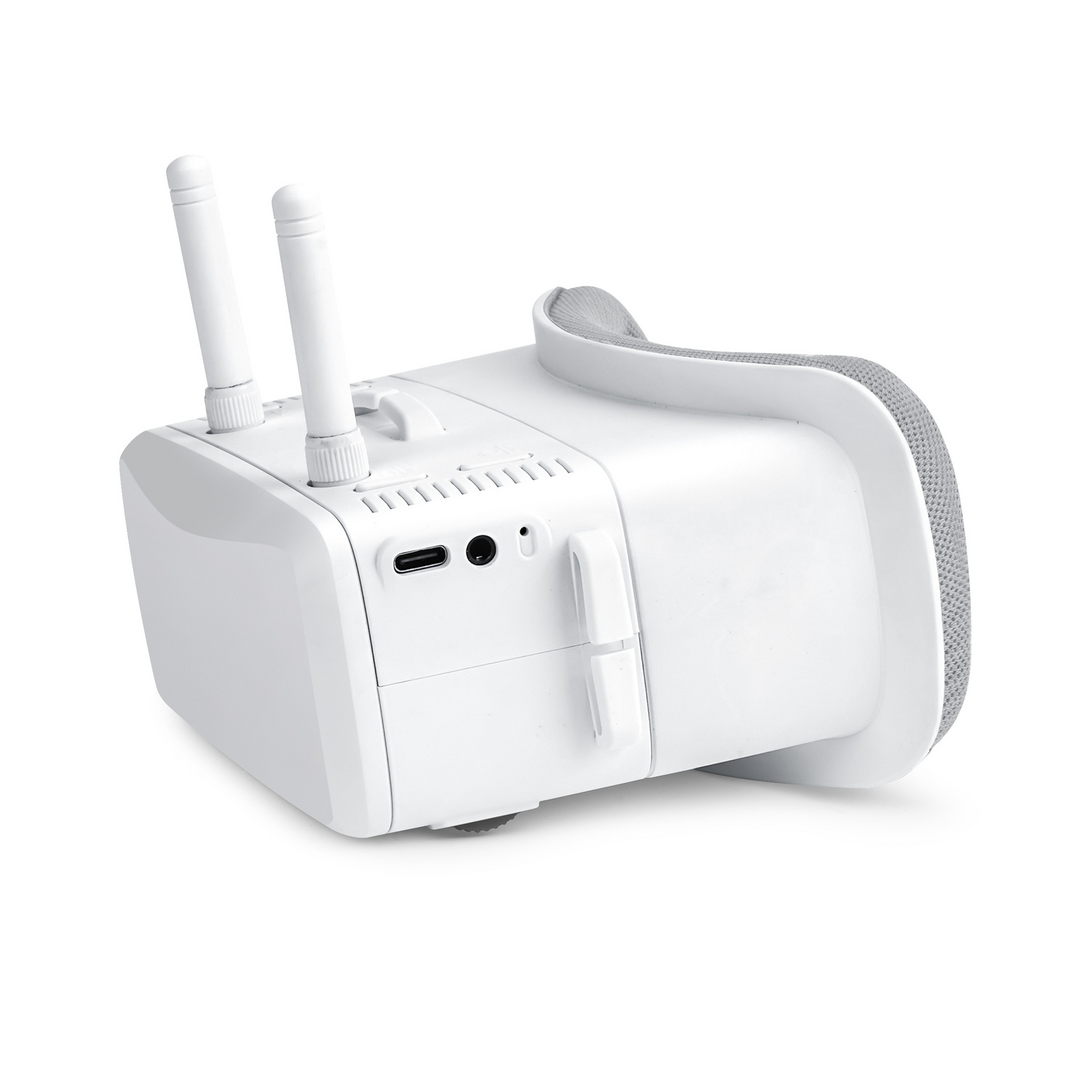

5.8G FPV video glasses VR100 3 inches

Instruction manual
Supports automatic frequency search
Zero delay of real-time video uploading
Built-in 3.7V 1200mA polymer battery
Built-in high sensitivity 40 frequency receiver module
Manual adjustment to match myopia degree (0°-700°)
Product features:
● New refraction light path design, small size, light weight;
● Object distance adjustable function, can match 0-700 degree myopia;
● Low power consumption, working current 350 MA;
● High sensitivity double filter 5.8G receiving module, strong anti-interference, more stable signal;
● The module adopts universal 40 channels, with automatic frequency search function;
● Adopt 3.0inch 480*320 resolution high brightness IPS screen;
● Built-in 3.7V/1200mAh large-capacity polymer lithium battery;
● Universal TYPE-C charging interface;
● Real-time video return, zero time delay;
● Chinese and English bilingual dishes are supported
● Support external video signal input;
● AV signal audio and video output can be connected to external DVR for recording;
Key function description:
① Key 1: long press (3 seconds) to turn on/off; Tap to enter the menu and press each time to switch to the next menu.
② Key 2: Short press the automatic search signal (finally lock the strongest frequency of the signal).
③ Key 3: Short press to switch frequency (cyclic switch 1-2-3-4-5-6-7-8 frequency), menu mode is +.
④ Key 4: Short press to switch frequency band (cyclic switch A-B-E-F-R frequency band). In menu mode, the value is -.
⑤ Antenna head A: The inner hole antenna head is equipped with the RP-SMA inner needle antenna.
⑥ Antenna head B: The inner hole antenna head is equipped with the RP-SMA inner needle antenna.
7 Adjusting gear A: Rotating the gear can push the position of the internal lens to move to adjust the distance.
⑧ Adjusting gear B: synchronous use with adjusting gear A, the same function...
⑨ Charging port: The TYPE-C interface supports DC5V charging.
⑩ Headphone port: 3.5mm AV jack to support external video input and local audio and video output.
11 Indicator light: the red light is on when charging, and the green light is on after the red light is off.
12 High frequency skin: Install Velcro.
13 Three-piece elastic head belt: external buckle installation.
Safety instructions:
1. Please read through the instruction manual before operation and be familiar with the product characteristics!
2. Age recommendation: over 14 years old. Children under the age of 14 who use any monitor in close proximity can cause problems with eye development. This is not a child's toy!
3. Please avoid using the product in a humid environment!
4. Please use standard USB charger, charging voltage is only 5V.
5. AV output and Video input cannot work at the same time, and it is forbidden to insert external video in RF receiving mode.
6. Please do not use corrosive cleaning agent to wipe the product!
