AF-C170

AF-C170

WhatsAPP : +86 153 5848 0946

WhatsAPP : +86 153 6627 3302/+86 137 7193 3756

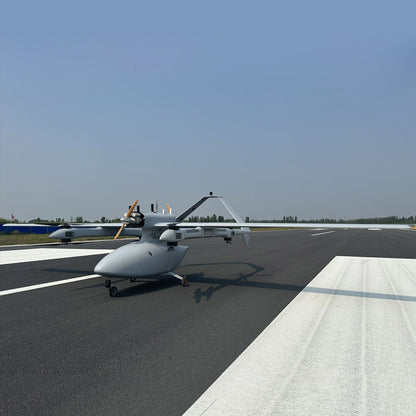

The AF-C170 fixed wing delivery drone, with 180kg load capacity and up to 8 hours of flight time.
The fuselage is made of aviation carbon fiber composite material. it is characterized byhigh strength and light weight, suitable for various application such as long flight time, largeload and weight tasks,etc.
This product can be customised with e.g. UV detectors, thermal cameras, cold rooms, metal detectors, etc.
The engine is mounted above, leaving more space and load weight for the fuselage, which can carry more load.
According to diferent customer needs, we also have the version with lighter body weight,larger task load and longer endurance.

View full details
  • Specifications
  • Downloads
  • Length 3930 mm
    Height 1775.5 mm
    Wing span 8000 mm
    Airframe material Aviation carbon fiber composites
    Engine Gasoline engine
    Load Vtol 75 kg | Taxing 130 kg
    Take-off mass Vtol 170 kg | Taxing 180 kg
    Level speed 26~45 m/s
    Cruising speed 28 m/s
    Fuel consumption Vtol 7.5 L/h | Taxing 7 L/h
    Max range Vtol 400km | Taxing 428km

    AF-C170

    * All performance data in the foregoing pages are theoretical values obtained by UAVCrafts® internal laboratories through tests carried out under particular conditions.
