AF-C10

AF-C10

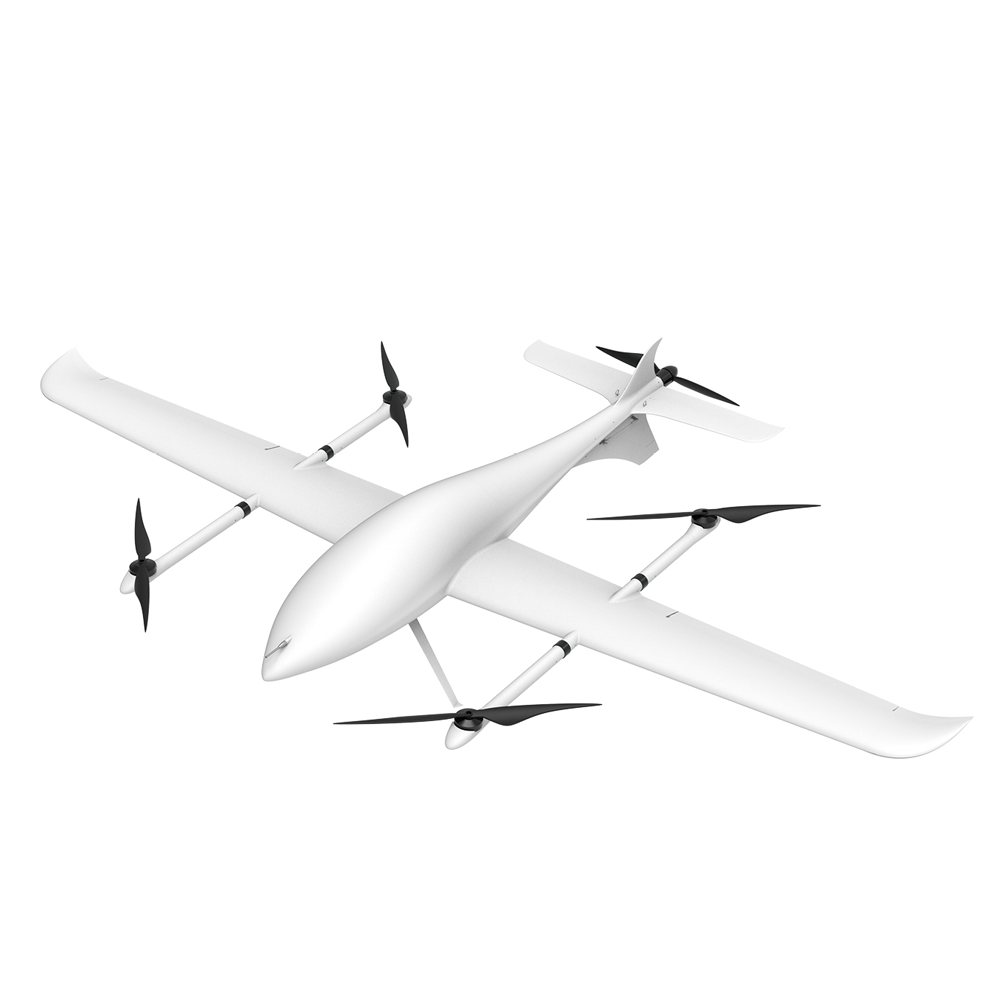

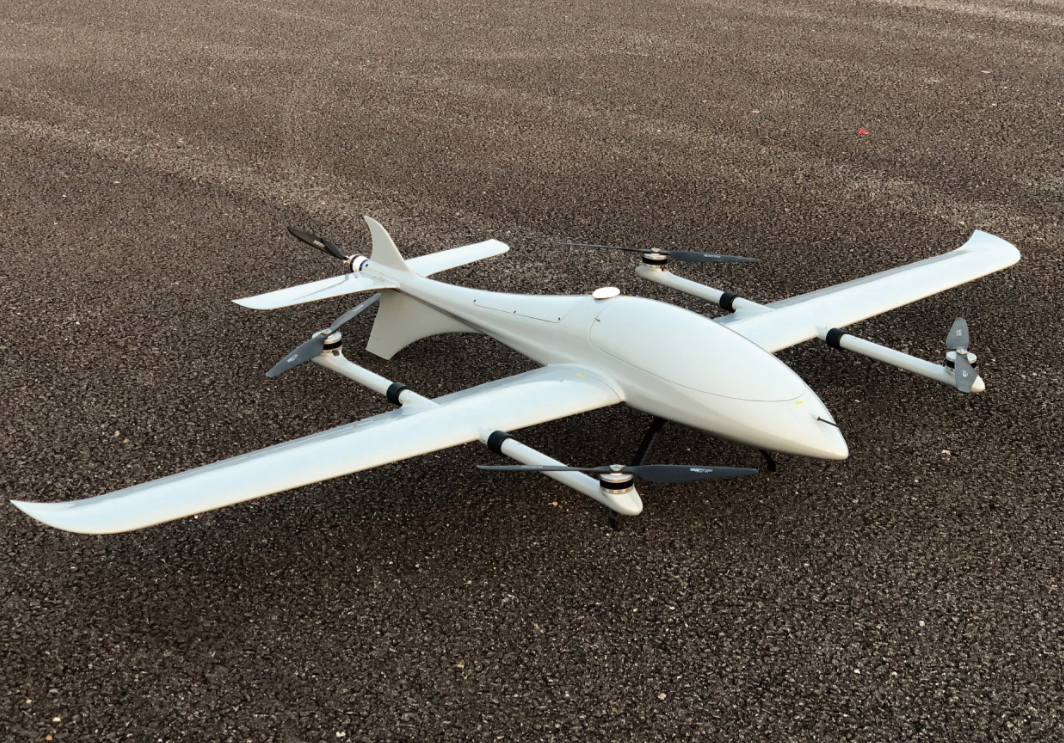

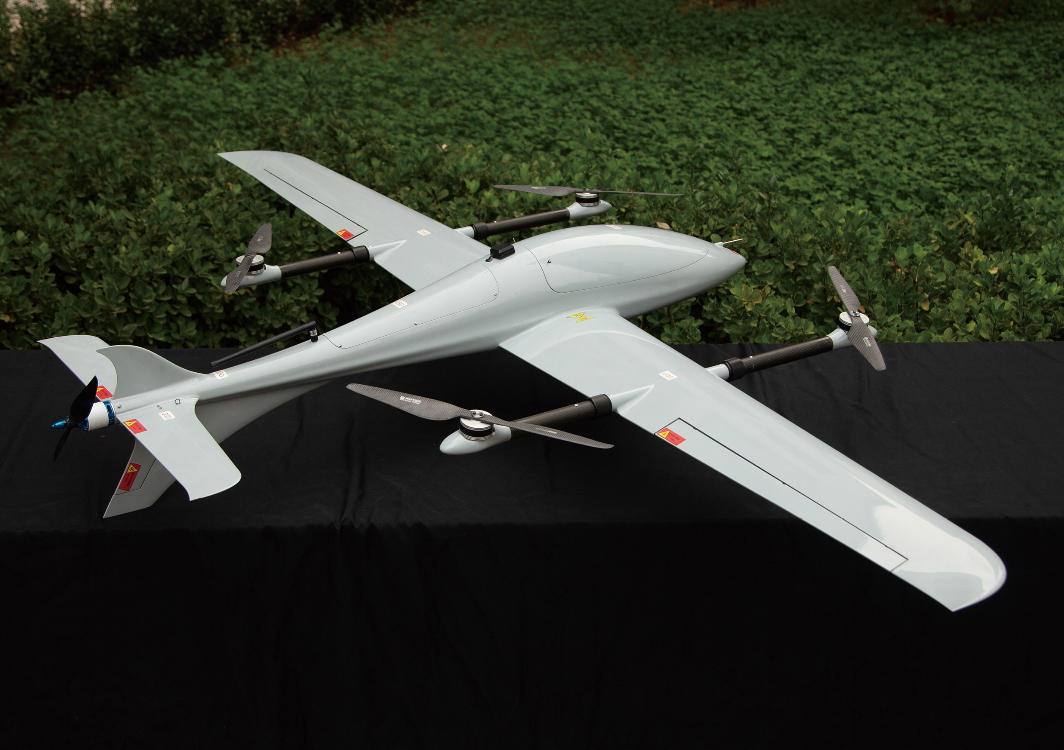

AF-C10 adopts a fixed-wing combined with quadrotor hybrid layout, ingeniously solving the challenge of vertical take-off and landing for fixed-wing UAVs. This design retains the advantages of long endurance, high speed, and long-range flight characteristic of fixed-wing drones while incorporating vertical take-off and landing capability, enabling operations without the need for a dedicated runway. Its conventional aerodynamic configuration ensures overall safety and reliability, and its light weight and heavy payload capacity further expand the scope of UAV applications, making it an ideal choice in the industrial UAV sector.

SKU:

View full details
  • Specifications
  • Downloads
  • Length 1519 mm
    Height 356 mm
    Wing span 2398mm
    Air frame materia Aviation carbon fiber composites
    Payload 1.6 kg
    Take-off mass 10 kg
    Level speed 18~35 m/s
    Cruising speed 25 m/s
    Fuel consumption 3.5h-1.6kg
    Max range 240 km
    Altitude 5000 m

    AF-C10

    * All performance data in the foregoing pages are theoretical values obtained by UAVCrafts® internal laboratories through tests carried out under particular conditions.
